Yamato Scientific | Water Purifiers Pure Water, Labo Cube Series WL300A/300B

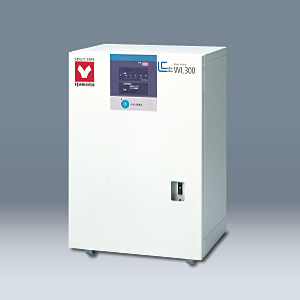

Water Purifiers Pure Water, Labo Cube Series
WL300A/300B

WL300A/300B have been discontinued

The product is a pure water producing unit for washing, which may be used by installing in a draft chamber or a sink, or on a table.

Water obtaining system

Ion exchange system

Obtained pure water

Ion exchanged water

Specific resistance

10 Mohm.cm or more

Water quality level

The product is ideal for washing. By installing this under a draft chamber or a sink to perform washing with ion exchange water easily.
Equipped with a preprocess filter and the ion exchange resin replacement indication function.
Also equipped with a water leak detection function that stops water supply in case water leak occurs, or a safety function with an electric leakage breaker.

Specifications

Model	WL300A	WL300B
Product code	253624	253625
Type	Desktop type	Embedded type
Performance
Water obtaining system	Ion exchange
Water supply/discharge system	Water faucet and hose connector with a one-touch coupler
Configuration
Quality of obtained water	A2 ion exchange water
Obtained amount and system of ion exchange water	Approx. 1L/min Continuous obtaining of water
Preprocess cartridge	0.1 um hollow fiber filter with activated charcoal (PWF-1)
Ion exchange cartridge	Ion exchange cartridge (CPC-L) 3L x 2
Water leakage detection	Water supply solenoid valve is forced to shut off when water leakage is detected
Ion exchange water obtaining port	Resin gun type (pure gun)
Water quality display	Conductivity is displayed in 5 steps LED
Other displays	Consumables replacement display (preprocess cartridge, ion exchange resin), alarm display (water leak alarm)
Legs	Rubber legs	Caster
Standards
Raw water pressure range	0.5 to 5 x 100 kPa (0.5 to 5 kgf/cm2)
Power source	AC 100V 1A
External dimensions*/weight	400 x 320 x 600 mm (W/D/H) / Approx. 27 kg
Accessory
Accessories	Water supply port unit (with hose), preprocess cartridge & ion exchange cartridge CPC-L, pure water hose for obtaining water, operation manual, warranty card

* External dimensions do not include protrusions.
A water faucet is necessary for installing this unit.

The following set of units is necessary when the unit is installed in a draft chamber or a sink, or on a table.

Application	Set
Installation	WL300 + draft chamber/sink installation kit

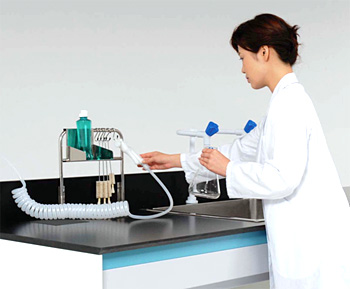

Control panel	Installation example

Preprocess cartridge, ion exchange cartridge
Preprocess cartridge PWF-1 Ion exchange cartridge CPC-L

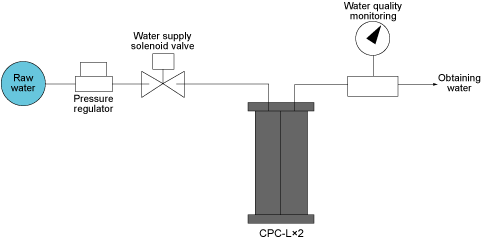

Block diagram

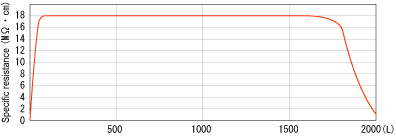

Dimensional drawing (mm)	Sample measurement in ion exchange resin life test (specific resistance)

Optional items

Item name	Product code
Draft chamber/sink installation kit	253263
Preprocess cartridge PWF-1	253099
Ion exchange resin cartridge CPC-L	253253

Gun type water supply plug
