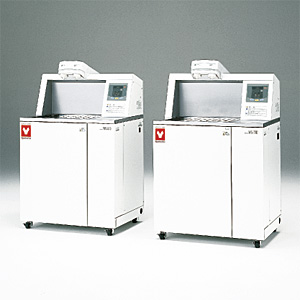

Water Purifiers WG510/710/730

 WG510/710/730 have been discontinued.

	High-capacity type to supply highly pure water with a single motion. These models employ microproccessor automatic control of all processes, from the supplying of water, ion exchange and distillation, to the storage. Model 510 710 730 Water Purification Method Ion exchange --> Distillation Ion exchange --> Filtration Purified Water Ion exchange water / Distilled water Distilled Water production 5.0 L/h 10 L/h 7.5 L/h Collection Water Ion exchange water 1 to 2 L/min Distilled water 1.5 to 2.5 L/min
They feature a number of devices for direct production of large amounts of distilled water and deionized water. They also include a number of devices with many functions that guarantee high purity of water, as well as 2 methods of production of deionized water. The operation panel has high operability such as arbitrary setting of amount of water supplied, single key-stroke system and a water quality monitor indigital form which permits you to check the water quality easily. lt is easy to exchange the ion-exchange resin cartridge.

Specifications

WG510 WG710 WG730 Performance Water purification method Ion-exchange --> Distillation --> Filtration Purified water Distilled water, Deionized water Distilled water production Approx. 5 L/Hr. Approx. 10 L/Hr. Approx. 10 L/Hr. Collection of Distilled water Approx. 1 to 2/1.5 to 2.5 L/min. (50/60Hz) Collection of Ion exchange water Approx. 1.0 to 1.5 L/min. Components Boiler Stainless steel Condenser Stainless steel Heater Ceramic heater, 2 pcs. Ceramic heater, 4 pcs. Ceramic heater, 3 pcs. Distilled water storage tank Polyethylene made, 60 L Raw water filter Pre-treatment cartridge (activated carbon + hollow fiber membrane, 0.1μm) Pure water filter Membrane filter (hollow fiber membrane, 0.1μm) Ion-exchanger One-touch connecting type large cartridge (mixed floor type, 10 L) Water quality monitor Temperature automatic compensation, digital display Display are switch types electric conductivity and the resistivity 0.05 to 300 X 10-4 S/m.25deg.C (Conductance) 0.1 to 18 X 104 Ω.m.25deg.C (Resistivity) Distilled water tank level display Display on LED in 5 steps Range of collection capacity 0.1 to 99.9 L (0.1 L/step) Water pump Output 20W Raw water pressure range 1 to 5×100kPa (1 to 5kg /cm2) Standard Raw water pressure range 1 to 5×100kPa (1 to 5kg /cm2) Power source 50/60Hz AC200V, single phase 20A (30A) AC200V , single phase 40A (50A) AC200V , three phase 18A (30A) External dimensions(W×D×Hmm) 903×603×1, 430 Weight Approx. 110 kg Accessories   Water supply hose -- 2m×1 pc. (with connecting unit), Drain hose -- 3m×1 pc. (with hose clamp), Detergent -- 1kg, Pre-treatment cartridge -- 1 pc. Ion-exchange resin -- 1 pc. Membrane filter-- 2 pcs.

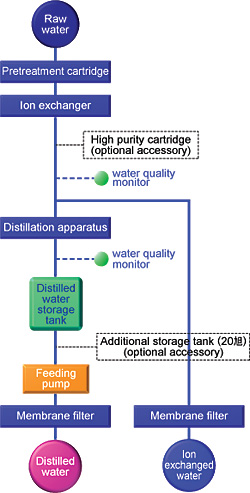

Control panel	System Diagram
Structure
Inner View

Dimensional drawing (mm)

Water qualify analysis / Industrial standard JISK 0557

Item Exchanged water Distilled water Measured value Type Measured value Type Electric conductivity(mS/m) 0.0055 A4 0.083 A4 Organic carbon (TOC) (µgC/L) 28 A4 40 A4 Zinc (µ Zn/L) <0.01 A4 <0.01 A4 Silica (µ SiO2/L) <0.1 A4 0.5 A4 Chloride Ion (µCL-/L) <0.1 A4 <0.1 A4 Sulfuric acid Ion (µ SO4-/L) <0.1 A4 <0.1 A4 Total level A4 A4

Optional items & Consumable items

Description Model No. Product Code Supply Water Unit OWH10 WS200/220, WG35/510/710/730, WA200/500/570/710/730 253686 Connection Unit G (WL100 Autostill) WG510/710/730, WA500/570/710/730 253668 Sampling Hose Connection Unit OWF WG510/710/730, WA500/570/710/730 253208 High Purity cartridge (CPC-H) Connection Unit OWD10 WG510/710/730 253207 Drain Trap OWI20 WG35, WG510, WA570 253212 Drain Trap OWI40 WG710, WA500/710 253214 Drain Trap OWI50 WG730, WA730 253215 Pretreatment cartridge PWF-1   253099 Ion exchanger SPC-10 WG510/710/730 9110010004 Ion exchanger SPC-10 Reproduction cost   000823 Membrane filter MFRL730 WG510/710/730, WA500/570/710/730 9020010006 Cleaning agent (1kg)   8190010001
