Water Purifier

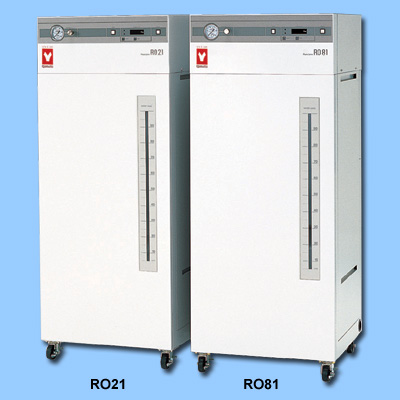

RO21/81 |
 |
 |
| Model |
| 21 |
81 |
| Collection Pure Water |
| RO Water |
|
|
 |
- Removable Average 90% of Impurities in Raw Water by RO Method
- External Water Pump can supply RO Water to remote position.
- Directly, RO Water can be supplied to the other equipment
- Collectable Constant Quality RO Water by Automatic DrainFunction
for Primary Water
- It’s loaded with Automatic Washing Function for RO Membrane.
It prevents Pollution of Bacteria .
|
 Specifications |
| Model |
RO21 |
RO81 |
| Performance |
| Collection Pure Water |
RO Water |
| RO Water Collecting Amount |
Approx. 20L/h (Water Temp. 25deg.C) |
Approx. 90L/h (Water Temp. 25deg.C) |
| Components |
| Raw Water Filter |
Wined Cartridge (Filter Accuracy 10μm), SWPP-010-1 |
| Pressure Pump |
Rotary Vane Pump |
| Output 200W |
Output 260W |
| RO Element |
Spiral Shape (Cellulose Acetate Membrane) |
| RO Water Tank |
Polyethylene Made 100L |
| Water Supply Pump |
Magnet Pump |
| Output 45W, Pump Lift 8/11m (50/60Hz) |
| Water Quality Meter |
0.01 x 10-4 to 999 x 10-4S/m, 25deg.C (0.01 to 999μs/cm, 25deg.C) |
| (Digital Display) Temp. Automatic Adjustment Type |
| Pressure Gauge |
0 to 2.45Mpa (0 to 25kg/cm2), Operating Pressure 0.98Mpa (10kg/cm2) |
| Standard |
| External Dimensions |
W600 x D580 x H1,465mm |
| Power |
AC100V, 50/60Hz, 5A |
AC100V, 50/60Hz, 7A |
| Weight |
Approx. 103kg |
Approx. 114kg |
|
Note: Inlet Water Pressure should be 0.5 to 100kPa (0.5 to 5kg/cm2).
|
| Optional
items |
| Remark |
Description |
Model No. |
Product Code |
| |
Connection unit A |
WL100/21P |
253677 |
| |
Connection unit B |
WL100+Filter Housing Unit |
253678 |
| |
Water supply port unit OWH10 |
WL21/21P, WE21, RO21/81 |
253686 |
| |
High purity ion exchange cartridge ICR-1 |
WE21,WL21/21P* *required 2 pcs. |
000813 |
| ○ |
Stand for AS32A |
WL21P |
253673 |
| ○ |
Stand for AS32B |
WL21P |
253674 |
| ○ |
Stand for AS31A |
WL21 |
253671 |
| ○ |
Stand for AS31A |
WL21 |
253672 |
| |
Filter stand |
WL100 |
253676 |
| |
Filter housing unit |
WL100 |
253675 |
| |
Pretreatment cartridge PWF-1 |
WL300 |
253099 |
| |
Ion exchange resin cartridge CPC-L |
WL300 |
253253 |
| |
Activated Carbon filter YAC-250 |
WL21/21P |
9020026002 |
| |
Ion exchange resin cartridge ICR-2 |
WL21/21P/WE21 |
000811 |
| |
Ion exchange resin cartridge ICR-2, regeneration charge |
WL21/21P/WE21 |
000812 |
| |
Ion exchanger, IE bomb |
WL100 |
000821 |
| |
Ion exchanger, IE bomb, regeneration charge |
WL100 |
000822 |
| |
Membrane filter PSECG20SSIAW1 |
WL21/21P/WE21 |
9020010007 |
|
|
Note:
The transportation cost will not be required if the order is together with main unit except the item marked "○".
In case you order the item marked "○" together with the main unit, please ask Yamato to obtain the correct transportation cost. |
|
