Yamato Scientific | Incubator Labo Cube Series ICL300A/300B/310A/310B

Incubator Labo Cube Series
ICL300A/300B/310A/310B

ICL300A/300B/310A/310B have been discontinued.

Small incubator for easy incubation or keeping temperature of specimen by installing under a clean bench or a laboratory table.

Operating temp. range

Room temp.+5 to 70 deg.C

Temp. distribution accuracy

+/-1.0 deg.C (at 37 deg.C)

Internal capacity

34.7L

A vertical open door allows easy setting or taking out baskets without even having to stand up off the chair.
Shelves may be increased up to five to cope with increase in amount of specimen. (Two shelves are included as standard, additional shelves are optional.)
Easy to operate digital setting display, which has employed a controller with the timer operation function.
There are two compact models, desktop type ICL300A/310A that can be used on a laboratory table and ICL300B/310B for use by installing in a laboratory table.
A multi power source has been employed: ICL300A/B for 100 to 120V and ICL310A/B for 200 to 240V.

Specifications

Model	ICL300A	ICL300B	ICL310A	ICL310B
Product code	221142	221143	221162	221163
Type	Desktop type	Installation type	Desktop type	Installation type
System	Internal chamber wall heating natural convection system
*Performance1**
Operating temp. range	Room temp. + 5 to 70 deg.C
Temp. adjustment accuracy	+/-0.5 deg.C (at 37 deg.C)
Temp. distribution accuracy	+/-1.0 deg.C (at 37 deg.C)
Configuration
Internal material	Stainless steel plate
External material	Chrome free galvanized steel plate
Heat insulator	Glass wool
Door	Front opening system
Shelf	2 as standard, Deep punching shelf board with a pull-handle (height: 25 mm)
Number of shelves	Five at 50 mm pitch
Packing	Magnet packing
Heater	120V 145W		240V 180W
Leg	Rubber leg	Caster wheels	Rubber leg	Caster wheels
Controller
Temp. control system	PID control with a micro computer
Temp. setting system	Digital setting display
Operation function	Fixed operation & timer operation (quick auto stop, auto stop, auto start)
Control sensor	K-thermocouple
Function
Safety functions	Over current electric leakage breaker, automatic overheat prevention function, bimetal overheat preventive device (manual reset)
Standards
Chamber internal dimensions and capacity	350 x 300 x 330mm (W x D x H), 34.7L
External dimensions*2	450 x 400 x 600mm (W x D x H)
Power source	Multi power source AC100 to 120V, 1.2A (6A)		Multi power source, single phase AC200 to 240V, 0.8A (10A)
Weight	Approx. 22kg

*1 Condition: Temperature and humidity 23 deg.C+/-5 deg.C; 65%RH+/-20 %(no-load).

*2 External dimensions do not include protrusions.

About multi power source:
The product has a function to determine an optimal PID control and heater operation amount according to a different voltage by simple setting on the controller. When you want to use the product in Japan and overseas, first confirm the power source is 100 to 120V (ICL300) or 200 to 240V (ICL310) and select the correct model. Note that the power plug of the product is for Japan and you need to prepare an appropriate plug by yourself if you are going to use it overseas.

Control panel	Internal view

Installation example of clean bench

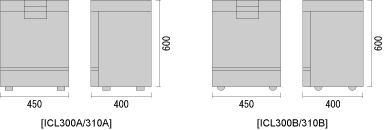

Dimensional drawing (mm)

Optional items

Description	Model No.	Product Code
ICL300/310 shelf set	ICL Series	281526
