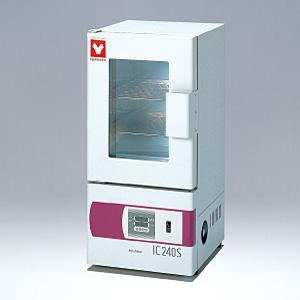

Small Size Incubator IC240S/340S

 IC240S/340S have been discontinued.

IC240S	Model 240S 340S Operating Temperature Range Room temp. +5deg.C to 70 deg.C Temp. Distribution Accuracy ±1.0deg.C(at37deg.C) Internal Capacity 20 L 55 L
Compact Setting Space Loaded with Double Glass Observation Window Loaded with Fall Down Prevention Parts as Standard Accessory Temperature controller is PID control by micro computer, with auto start function, auto stop function included. After electric leakage breaker, 3 type of controller sensor disconnection alarm, exsessive prevention function (heater disconnection, self holding circuit by relay), independent excessive prevention function by hydraulic temperature control is added as standard accessory

Specifications

Model IC240S IC340S Performance Convection Type Air Jacket Type Operating Temp. Range Room Temp. +5 to 70deg.C Temp. Adjustment Accuracy ±1deg.C (at 37deg.C) Temp. Distribution Accuracy ±1deg.C (at 37deg.C) Time to Reach to Max. Temp. Approx. 60min. Components Exterior Steel, Baked Paint Finish 0.8t Heat Isolation Material Rock Wool / Styrene Foam Heater Iron Chrome Wire Heater, 150W Iron Chrome Wire Heater, 250W Exhaust Hole Upper Side 1pc. Door Steel, Baked Paint Finish 0.8t, with Double Glass Observation Window (Tempered Glass 200 x 350mm) Temp. Controller PID Control by Micro Computer Timer 0 to 999.9hrs. Temp./Timer Display LED Digital Display Temp. Sensor K-Thermocouple Operating Function Fixed Operation (Automatic Start and Stop by Timer Setting) Operation Panel Sheet Key (LED: Temp., Timer / Lamp: Heater, Temp. Abnormal) Main Switch (Electric Leakage Breaker) Safety Device Safety Countermeasure Independent Overheat Prevention by Liquid Pressure Type, Individual Overheat Prevention, Heater Wire Broken/Sensor Input Alarm, Electric Leakage Breaker Standard Internal Dimensions W240 x D250 x H340mm (incld. The Space under the Lowest Shelf) W300 x D350 x H530mm (incld. The Space under the Lowest Shelf) External Dimensions W320 x D340 x H685mm W380 x D440 x H875mm Internal Capacity Approx. 20L Approx. 55L Shelf Qty./Shelf Rest Pitch 5pcs. / 50mm 9pcs. / 50mm Power AC100V, 50/60Hz, 1.5A(15A) AC100V, 50/60Hz, 2.5A(15A) Weight Approx. 20kg Approx. 30kg Accessory Shelf : 2 pcs., Fall Down Prevention Parts : 1 set

Control panel

Dimensional drawing (mm)

IC240S/340S

Optional items

Remark Description Model No. Product Code ○ Stand IC240S/340S 211188 Shelf (for 240S with support 2 pcs.) IC240S/340S 211189 Shelf (for 340S with support  2 pcs.) IC240S/340S 211190 Note: The transportation cost will not be required if the order is together with main unit except the item marked "○". In case you order the item marked "○" together with the main unit, please ask Yamato to obtain the correct transportation cost.
