| Product code |
221551 |
221553 |
| Model |
CF320S |
CF320P |
| System |
External sealed circulation |
| Performance*1 |
| Operating temp. range |
-20 deg.C to room temp. |
| Temp. adjustment accuracy |
+/-2 deg.C |
| Cooling capacity |
Approx. 450W (385 Kcal/h) at liquid
temp: 10 deg.C
Approx. 350W (300 Kcal/h) at liquid temp: 0 deg.C
Approx. 260W (220 Kcal/h) at liquid temp: -10 deg.C |
| Circulation device configuration |
| Temperature control |
Refrigerator ON-OFF control |
| Temperature sensor |
T-thermocouple (with SUS protective
tube) |
| Temp and time setting |
Digital setting and LED display |
| Refrigerator/refrigerant |
Air-cooled 350W / R404A |
| Circulation pump |
With a magnet pump and an H bypass |
Pump
performance |
Max. flow
(50/60 Hz) |
15 L/min |
Max. lift
(50/60 Hz) |
5.5/7.0m |
Unit
circulation
performance |
Max. flow
(50/60 Hz) |
9.1/8.9 L/min |
Max. lift
(50/60 Hz) |
4.8/5.5m |
| Cooling coil |
Copper nickel plating |
| Leg |
Caster wheels |
| Collection device configuration |
| External circulation nozzle |
O.D. 10.5 mm (SUS) I/O one system, with
a discharge side stop valve |
| Operating environmental temp. range |
5 to 35 deg.C |
| Solvent collection cooloing pipe |
Dia.8 Surface area: 530 cm2 |
| Solvent collection nozzle |
O.D. 8 mm (SUS) Each of I/O x 1 |
| Solvent collecting bottle |
500 mL glass bottle x 1 |

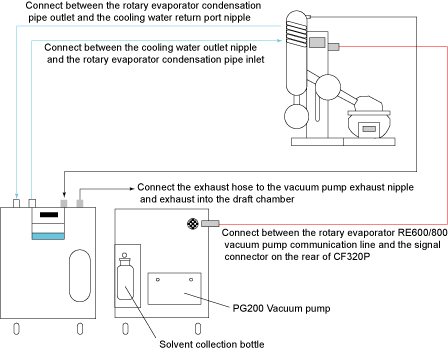

| Connection to vacuum pump |
- |
A Teflon diaphragm vacuum pump PG200 with displacement
of 20 L/min can be connected to the inside of the main unit, with
a dedicated service outlet. |
| Function |
| External link function |
- |
External link terminal (no-voltage type):
Circulation pump of the circulator is OFF and vacuum pump is OFF
when the contact is closed.
|
| - |
RE signal connector:
Vacuum pump delayed stop circuit with linked operation of RE600/800
(vacuum pump delay timer communication line is optional) |
| Other functions |
Drain, over flow |
| Safety functions |
Over current electrical leakage breaker,
refrigerator over load relay, pump thermal protector delay timer
for protecting refrigerator, H bypass for protecting pump |
| Standards |
| Water tank |
Stainless steel, rectangle type, Approx.
4L (liquid amount: 3L) With over flow |
| Power source |
AC100V, 10A (service outlet 5A) 50/60
Hz |
| External dimensions*2 |
400 x 400 x 600 mm (W/D/H) |
| Weight |
Approx. 40 kg (excluding vacuum pump) |
| Accessory |
| Accessories |
Top cover, drain hose, operation manual,
warranty card |

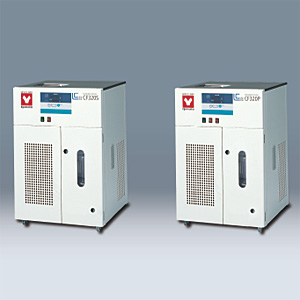

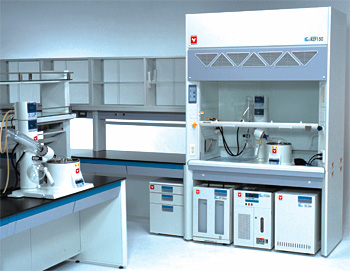

External sealed system cooling water circulator with a built-in solvent collection device that can be installed under a draft chamber or a sink and is compatible with Labo Cube.
