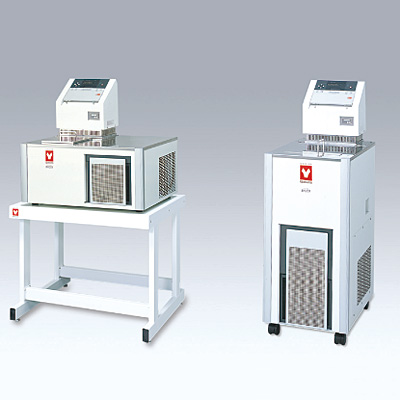

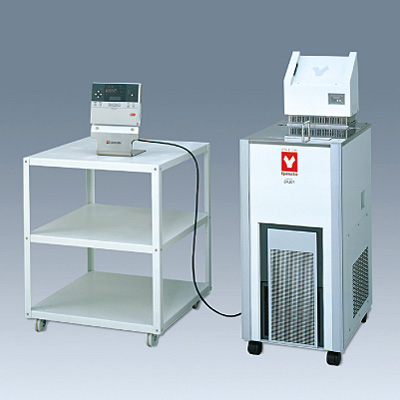

Precision Low Constant Temperature Water Bath, "Thermo-Elite" BH201/301 These models have already been discontinued and replaced by the successive model "BH302". Model 201 301 Operating temp. range -20deg.C to +80deg.C -25deg.C to +80deg.C Temp. Distribution Accuracy ±0.01 (at 20deg.C) Bath Capacity Approx. 13L Approx. 30L The Wider Temp. Range. Suitable for Constant Temperature Test Powerful Circulation Pump can perform the better external circulation for Analytical Equipment, etc. Various Support Functions External Circulated Water Temp. can be controlled precisely by fixing External Sensor. Control Panel is Removable with Communication Cable for the Remote Control. (Communication Cable is Optional.) Specifications Model BH201 BH301 Performance Circulation Type Water Jet Pump Cooling Circulation/Closed System Operating Temp. Range -20 to +80deg.C -25 to +80deg.C Temp. Adjustment Accuracy ±0.01deg.C (at 20deg.C) Temp. Indication Unit 0.1deg.C Cooling Capacity Approx. 325W (280kcl) at Liquid Temp. 20deg.C Approx. 600W (516kcl) at Liquid Temp. 20deg.C Component Refrigerator/Coolant 250W, Closed Air Cooling Type Rotary, R134A 250W, Closed Air CoolingType Rotary, R404A Pump Max Flow Rate 14/16L/min (50/60Hz) Pump Max. Lift 2.8/3.4m (50/60Hz) Heater 1kW Surrounding Operation Temp. Range 5 to 30deg.C Controller Temp. Control System PID Control by Micro Computer Temp. Setting/Display Digital, LED Display, Fluorescent Display Tube Type Guide Display Temp. Sensor Pt Sensor, Pt100Ω (for Temp. Control) + K-thermocouple (for Overheat Prevention) , Double Sensor Timer 1min. to 99hrs.59min., 100hrs. to 999.9hrs., Time Change Setting Function Operating Function Fixed Temp. Operation, Fixed Time Automatic Stop Operation, Quick Automatic Stop Operation, Fixed Time Automatic Start Operation, Programming Operation (Max. 99 steps, Repeating, Gradient Operation), Programming Automatic Start Operation Safety Safety Countermeasure Electric Leakage Breaker for Over Current Protection, Refrigerator Over Load Relay, Refrigerator Pressure Detector, Float Switch for Empty Boiling Prevention, Refrigerator Protection-Delay Timer Function, Automatic Overheat Prevention, Independent Overheating Prevention Other Function Drain Cock, Filer for Condenser, RS485 Communication Function, Temp. Output Terminal, Alarm Output Terminal, Time-up Output Terminal, Key Rock Timer Function, Calibration Off Set Function, Breakout Protection Function. Standard Water Bath Dimension W389 x D226 x H150mm W296 x D501 x H200mm Capacity 13L 30L Effective Water Bath Dimension W154 x D190 x H136mm W238 x D335 x H184mm External Dimension W654 x D492 x H620mm (Water Bath Height 316) W385 x D590 x H1,150mm (Water Bath Height 850) Power AC100V50/60Hz13A AC100V50/60Hz14A Weight Approx. 47kg Approx. 60kg Accessory Connection Port for External Circulation Hose (R1/2 φ14), 2pcs. Program Controller Control Panel is Detachable. Have to install Optional Item "Remote Control Power Source" in case Communication Cable Length is more than 5m.   Back Side Optional items Remark Description Model No. Product Code   Circulation Insulation Hose, I.D. 12mm, Length 2m BH201/301 222088   External Communication Adapter, RS485-RS232C (conversion) BH201/301 281388   External Pt Sensor, Pt 100Ω, A-class, 3m, In Protection Tube BH201/301 281350   Communication Cable foe Remote Control, Remote ControlPower SourcePanel Stand for Remote Control4 Lead 5m BH201/301 281397 ○ Panel Stand for Remote Control BH201/301 281398   Power for Remote Control, Out put DC5V  BH201/301 281399 Note: The transportation cost will not be required if the order is together with main unit except the item marked "○". In case you order the item marked "○" together with the main unit, please ask Yamato to obtain the correct transportation cost. Panel Stand for Remote Control Remote ControlPower Source
