Fume Hood
Model RFS |
 |
RFS have been discontinued.
 |
- High Chemical-resistant and Heat-resistant
- Selectable with or without Blower
- Work Top Material Selectable
- RFX Anemometer is available as an optional accessory to digital-display Wind Velocity and Exhaust Air Volume.
|
 |
 Specifications |
| Model |
RFS-120 |
RFS-150 |
RFS-180 |
| Standard |
External Dimensions
(*1 with Blower) |
W1,200 x D750 x H2,350 (H2,690*1)mm |
W1,500 x D750 x H2,350 (H2,690*1)mm |
W1,800 x D750 x H2,350 (H2,690*1)mm |
| Weight (without Blower) |
Approx. 290kg |
Approx. 330kg |
Approx. 370kg |
| Exterior |
Cool-milling Steel, Chemical-resistant Baked Paint Finish |
| Interior |
Non-asbestos Special Board (Chemical-resistant Baked Paint Finish, P-VN) (Baffle Plate: Three Slit Type) |
| Work Top |
Ceramitite (S), Epoxy (E), Ceramic Steel (K) : One Table Top material can be chosen. |
| Glass Window |
Reinforced Glass, 6mm Thickness, Balance Weight Type |
| Water Faucet |
Single Goose Neck Type, 1pc. |
| Gus Cock |
Single Fuse Cock, 1pc. |
| Receptacle |
AC100V, 15A, with Double Earth |
| Fluorescent Lamp |
30W, Single Light |
30W, Single Light |
40W, Single Light |
| Safety Countermeasures |
Window Dropping Prevention Stopper, Exhaust Delay Timer, Blower Operating Monitor |
| Exhaust Air Volume |
12m3/min. |
16m3/min. |
19m3/min. |
| Internal Static Pressure |
30Pa (3mmH2O) |
59Pa (6mmH2O) |
79Pa (8mmH2O) |
| Suitable Blower Model |
YND-201 (In case of the model with blower) |
| Motor |
3-phase, 200V, 0.25kW |
| Optional Item |
| RFX Anemometer |
To be ordered together with Fume Hood simultaneously |
|
|
| Model No. Chart (Point Colour: Blight Yellow (Y) Standard) |
| Work Top |
Ceramitite |
Epoxy |
Ceramic Steel |
| Without Blower |
RFS-120S-Y |
RFS-120E-Y |
RFS-120K-Y |
| RFS-150S-Y |
RFS-150E-Y |
RFS-150K-Y |

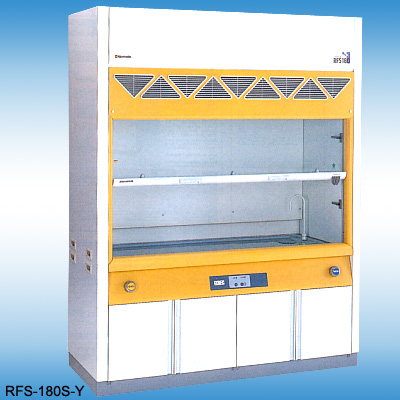

| RFS180S-Y |
RFS180E-Y |
RFS180K-Y |
| With Blower |
RFS-120SB-Y |
RFS-120EB-Y |
RFS-120KB-Y |
| RFS-150SB-Y |
RFS-150EB-Y |
RFS-150KB-Y |
| RFS180SB-Y |
RFS180EB-Y |
RFS180KB-Y |
|
|
| Colour Sample and Code |
 |
| Optional Blower, Model No. YND-201 |
| Material |
Impeller: FRPP Made
Casing: FRP Made
Stand: FC200 |
| Motor |
3-phase, 200V, 0.25kW, 4P |
| Operating Temp. |
Below -10~50oC (Operating Air Temp.) |
| Chemical-resistant |
Suitable for Acid, Inorganic Acid, Organic Acid.
(Except Chromic Acid and Hydro Fluoric Acid)
Alkaline: Suitable for Alkaline Gus such as Low Concentration Caustic Soda,
Activator: Suitable for Low Temp. Chemicals such as Acetaldehyde, Aniline, Formaldehyde |
|
|

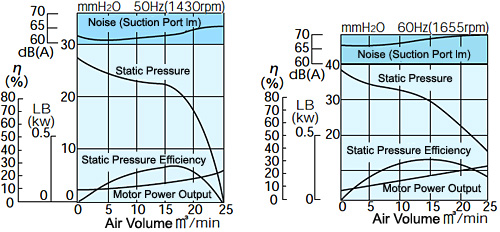

| Performance Graph |
 |
| Air Flow |
 |
|
